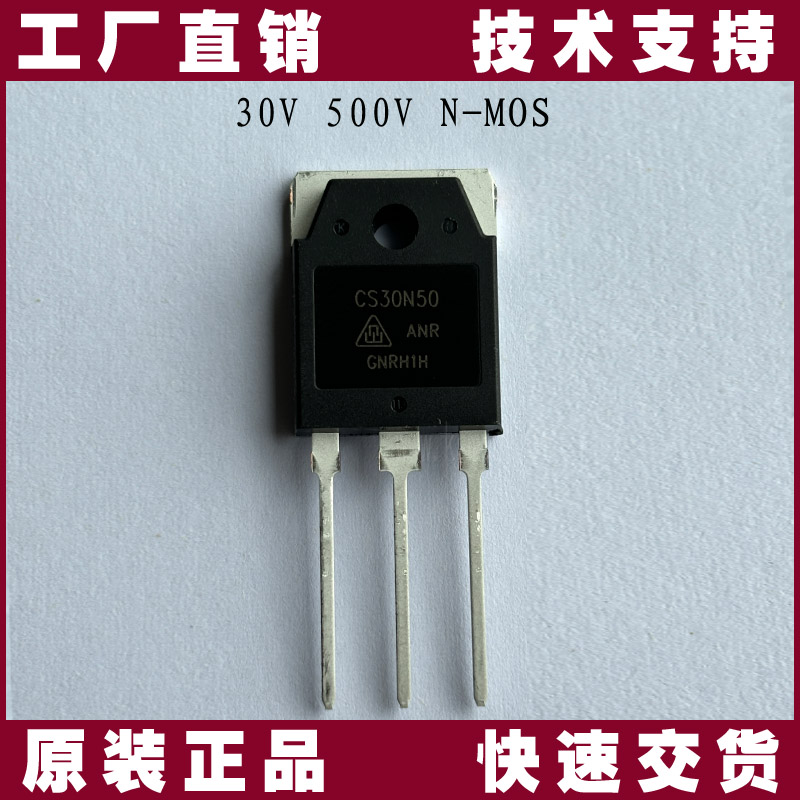

CS30N50ANR-华润微-MOS管

厂家型号:CS30N50ANR
品  牌:华润微
封       装:TO-3P
数据手册:下载文件
描       述: CS30N50ANR是华润微的一款30A 500V TO3P封装的MOS管.
特      点:

CS30N50ANR, the silicon N-channel Enhanced VDMOSFETs, is obtained by the self-aligned planar Technology which reduce the conduction loss, improve switching
performance and enhance the avalanche energy. The transistor can be used in various power switching circuit for system miniaturization and higher efficiency. The package form is TO-3P
(N), which accords with the RoHS standard..
Features:
l Fast Switching
l LowON Resistance(Rdson≤0.12Ω)
l Low Gate Charge (Typical Data:153 nC)
l Low Reverse transfer capacitances(Typical:29.7 pF)
l 100%Single Pulse avalanche energy Test
Applications:
Power switch circuit of electron ballast and adaptor.
Absolute(Tc= 25℃ unless otherwise specified)

×
